BroadScan D200

16通道收发超声波高压收发机,配高分辨率模数转换器。高达 5MHz 和 130V 峰峰值任意波形生成,用于快速和超声波扫描。

宽频率
高电压
体积小
多通道

Industrial Grade & Easy Connection

BroadScan D200 is the latest Structural Health Monitoring Device that is designed for both research institutes and industry NDT applications. BroadScan D200 can drive piezoelectric sensors and ultrasonic transducers with up to 130v peak-peak excitation voltage. BroadScan D200 sends out lamb waves or user-defined waveforms such as chirp signals, and collect structure response at the same time. BroadScan D200 has 16 transmit channels and 16 receive channels. BroadScan D200 has industrial-grade connection block for fast and easy connection to piezoelectric sensors with open wires. Researchers can use their own ultrasonic transducers or piezoelectric sensors and connect to D200 in a few minutes. This can save lots of time and effort to make connectors for the connection. With 14-bit high resolution and high speed analog to digital converter, and 14-bit high speed waveform generator, BroadScan D200 provides high signal to noise ratio with precision. BroadScan D200 has the highest quality/price ratio among Structural Health Monitoring devices available. It is compact yet robust, easy to carry around for field testing and measurements.

Easy Setup and Control

BroadScan D200 can be set up in a few minutes and controlled by a laptop or PC through Ethernet or WIFI interface (optional). An easy to use web interface is available for remote control of BroadScan D200. It has an integrated 32GB memory and fast 1.2GB processor. The power consumption of D200 is less than 10w typically.

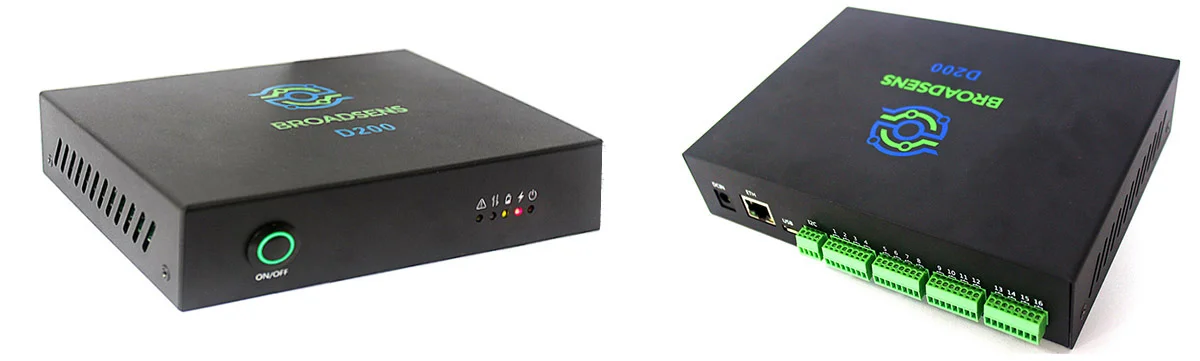

Multichannel ultrasonic transmitter and receiver BroadScan D200



BroadScan D200 Specifications

• Wide excitation frequency range: 50kHz up to 5MHz adjustable
• 16 ultrasonic transmit & receive channels
• 20db-80db adjustable gain at receive path
• 14-bit ADC for ultrasound receive
• 14-bit DAC arbitrary waveform generator for ultrasonic scan
• Adjustable sampling rates: 80MS/s, 40MS/s, 20MS/s, 10MS/s, 5MS/s, 2.5MS/s and 1.25MS/s
• Adjustable sample points: 2048, 4096, 8192, 16384, 32768
• Supports Broadsens temperature sensors, vibration sensors, displacement sensors, accelerometers, strain gauge sensors, environment sensors, etc.
• Software: integrated Influx DB database with web interface access. Easy to configure ultrasonic scan parameters
• 32GB integrated data storage
• 1.2 GHz microprocessor
• Ethernet connection & wireless connection
• Integrated high precision hardware real time clock
• I2C interface to connect other I2C sensors such as temperature, humidity, pressure sensors
• Operating temperature range: 0-65 degree Celsius (32-149 fahrenheit)
• Power adapter supports 12V DC input
• Size: 107x220x42mm (4.2x8.66x1.65 inch) (DxWxH)
• Weight: 0.91kg (2 lbs)
